Product Name:
Cold Shrink Termination
Product Description:
Cold Shrink Termination is a cold shrink technology-based cable termination solution designed for medium and low voltage distribution systems and transmission lines. Its seamless expansion feature ensures no longitudinal indentations are formed on the inner wall after installation, effectively preventing the formation of creepage paths. The large skirt structure and multi-skirt design provide excellent self-cleaning capability, preventing conductive channels between skirt ends under severe weather conditions. Cold Shrink Termination guarantees excellent creepage performance and is suitable for cables of various specifications.
Product Application:
1.Cold Shrink Termination is suitable for medium and low-voltage distribution station hubs and dedicated cable terminations for transmission tower piles.
2.It is compatible with various cable sizes, including 25-50mm², 70-120mm², 50-95mm², 150-240mm², 120-185mm², 300-400mm², 240-400mm², etc.
3.It is widely used in power, communications, transportation, and other industries, especially in outdoor environments.
Product Features:
1·Seamless Expansion Technology: No longitudinal indentations on the inner wall after expansion, preventing creepage path formation and ensuring safety.
2.Self-Cleaning Function: Multi-skirt and large-skirt designs provide excellent self-cleaning ability, effectively resisting the impact of environmental pollutants on the electrical system.
3.High Creepage Performance: The large skirt design with a maximum outer diameter of 150mm ensures excellent creepage resistance, suitable for complex environments.
4.Weather Resistance: Optimized structure design allows Cold Shrink Termination to maintain excellent performance in harsh weather conditions.
5.Suitable for Various Cable Sizes: Compatible with different cable sizes, providing flexible solutions.
Cable accessories accessories list:
| Cold terminal |
Semi conductive tape |
Grease Paste |
Cleaning paper |
Card |
| Casing pipe |
Filling glue |
PVC |
Band aid |
Installation process |
| Sealed tube |
Braided wire |
Phase color ring |
J-20 |
Certificate |
| Constant spring |
Tape |
Construction gloves |
Tie |
Insulating tube |

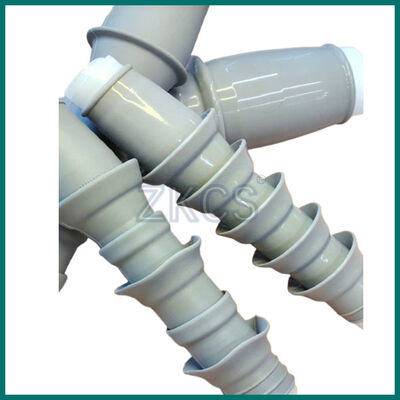

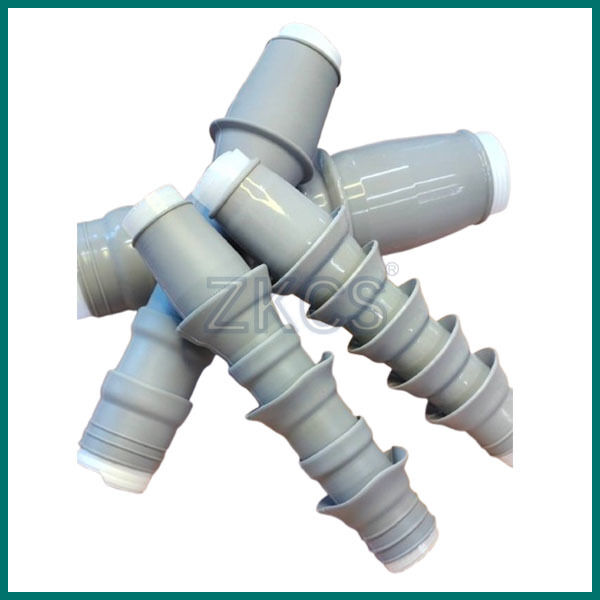

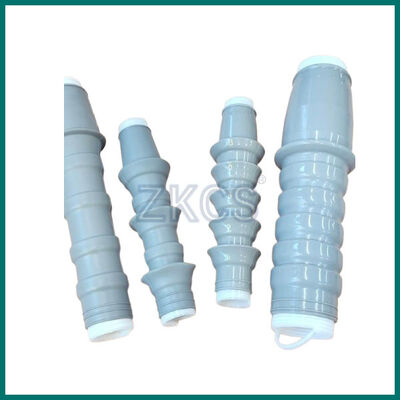

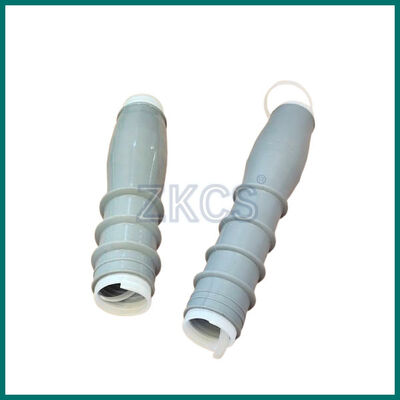

Picture for your reference.:
FAQ:
Q:Is the installation of Cold Shrink Termination complicated?
A:The installation process is straightforward. Simply select the appropriate Cold Shrink Termination according to the cable specification, slide it over the cable joint, and it will shrink as it cools, completing the installation.
Q:Can Cold Shrink Termination be used in outdoor environments?
A:Yes, Cold Shrink Termination is designed to be robust and weather-resistant, making it ideal for outdoor and harsh weather conditions.
Q:How does the self-cleaning function of Cold Shrink Termination work?
A:The multi-skirt and large-skirt design enables the product to automatically clear accumulated dirt in rainy or humid conditions, preventing contamination of the electrical system.
Q:Is Cold Shrink Termination suitable for various cable sizes?
A:Yes, Cold Shrink Termination supports a wide range of cable sizes, from small to large, offering high flexibility.
Q:What is the lifespan of Cold Shrink Termination?
A:Under normal usage conditions, the lifespan of Cold Shrink Termination can last over 20 years, providing long-term electrical protection.
