Cold Shrink Breakout | Pneumatic Expanding 3-Finger Silicone Rubber Cable Breakout for 12/20kV Power Systems

Cold Shrink Breakout | Pneumatic Expanding 3-Finger Silicone Rubber Cable Breakout for 12/20kV Power Systems
Cold Shrink Breakout | Pneumatic Expanding 3-Finger Silicone Rubber Cable Breakout for 12/20kV Power Systems
Cold Shrink Breakout | Pneumatic Expanding 3-Finger Silicone Rubber Cable Breakout for 12/20kV Power Systems Cold Shrink Breakout | Pneumatic Expanding 3-Finger Silicone Rubber Cable Breakout for 12/20kV Power Systems Cold Shrink Breakout | Pneumatic Expanding 3-Finger Silicone Rubber Cable Breakout for 12/20kV Power Systems Cold Shrink Breakout | Pneumatic Expanding 3-Finger Silicone Rubber Cable Breakout for 12/20kV Power Systems

Grande immagine :  Cold Shrink Breakout | Pneumatic Expanding 3-Finger Silicone Rubber Cable Breakout for 12/20kV Power Systems

Dettagli:
Luogo di origine: Cina
Marca: ZKCS
Certificazione: SGS
Numero di modello: personalizzato
Termini di pagamento e spedizione:
Quantità di ordine minimo: 500 pezzi
Prezzo: negoziabile
Imballaggi particolari: CARTONE
Tempi di consegna: 25 giorni
Termini di pagamento: ,T/T
Capacità di alimentazione: 300000pcs al mese
Contatto

Cold Shrink Breakout | Pneumatic Expanding 3-Finger Silicone Rubber Cable Breakout for 12/20kV Power Systems

descrizione
Colore: Grigio, Grigio scuro o Nero Tipo: Accessori per cavi
Gamma di cavi: 35–800 mm² Applicazione: Bassa tensione
Impermeabile: IP68 Materiale: Gomma siliconica
Evidenziare:

Tool-Free Installation

,

IP68 Waterproof

,

Anti-Tracking & UV Resistant

 3 Core Selling Points:

Pneumatic expansion for tool-free, fast installation
Broad compatibility with 35–800mm² 12/20kV cables
Superior insulation & weather resistance for durable performance



Voltage Model Suitable cable section area(mm²) Cable core insulation OD(mm²)

For 12/20KV 3cores indoor/outdoor terminators

(N/W)

and middle connector(J)

 LSN/W/J-3/1 35~70 19.3~22.1
LSN/W/J-3/2 95~185 23.7~28.4
LSN/W/J-3/3 240~400 30.7~35.6
LSN/W/J-3/4 500~800

Product Description:

This cold shrink breakout is precision-manufactured with pneumatic expansion technology, enabling fast, tool-free installation without heat guns or open flames. As a professional 3-finger cold shrink breakout, it is specially developed for 12/20kV medium voltage cable systems, delivering reliable performance for power insulation and cable separation.

Designed for 12/20kV 3-core cables (35–800mm²), this cold shrink breakout fits perfectly for indoor/outdoor terminations and middle connectors. Made of high-grade silicone rubber, it ensures strong flexibility and long service life in various working conditions.

This premium cold shrink breakout offers excellent anti-tracking, weather resistance, and long-term sealing, effectively protecting cables from moisture, dust, and corrosion in harsh industrial environments.


Applications:

Our Pneumatic Expanded Cold Shrink Breakout Sleeve is engineered for medium-voltage power distribution and transmission systems, making this cold shrink breakout ideal for 12/20kV 3-core cable terminations and middle joints.

As a key cable accessory in power projects, this cold shrink breakout is widely used in substations, transmission towers, and industrial power networks, providing stable cable separation and insulation sealing for cables ranging from 35mm² to 800mm².

Unlike traditional heat-shrink products, our cold shrink breakout supports fast, tool-free installation in remote outdoor sites and confined urban cable trenches, reducing fire risks and improving construction efficiency.

With outstanding UV resistance and anti-tracking performance, this cold shrink breakout performs well in coastal, high-altitude, and corrosive industrial environments. It also supports cable retrofitting and expansion projects, maintaining IP68 waterproof performance and long-term insulation stability.

Features:
  • Product Name: Pneumatic Expanded Cold Shrink Cable Breakout
  • Production Process: Precision pneumatic expansion molding
  • Installation: Tool-free, flame-free, time-saving on-site setup
  • Voltage Compatibility: 12/20kV 3-core cables (35–800mm²)
  • Insulation Performance: High dry/wet insulation resistance, anti-tracking
  • Environmental Resistance: UV-resistant, extreme temperature tolerant
  • Protection Level: IP68 waterproof and dustproof sealing
  • Application: Substations, transmission towers, industrial power networks
  • Material: High-quality silicone rubber
  • Structure: 3-finger design for stable cable branching

Technical Parameters:

Item Specification
Product Name 3-Finger Cold Shrink Breakout Boot
Material Silicone Rubber
Color Grey Black
Type Cable Accessories
Application 12/20kV Medium Voltage Cables
Fabrication Machine Pneumatic Expanding Machine
Advantage IP68 Waterproof, Tool-Free Installation
Highlight 3-Finger Design, Low Temp Resistant, Anti-Tracking
Cable Range 35–800mm²



FAQ:

Q: What production technology is used for this cold shrink breakout?

A: This cold shrink breakout is manufactured by advanced pneumatic expanding machine, ensuring uniform expansion and precise fit for cable cores.

Q: What voltage and cable specifications is this cold shrink breakout suitable for?

A: This cold shrink breakout is designed for 12/20kV 3-core cables, covering a cross-section range of 35–800mm².

Q: Does installation require open flames or special tools for this cold shrink breakout?

A: No, this cold shrink breakout can be installed without heat guns, flames, or extra tools, which is safe and efficient.

Q: What is the protection level and temperature resistance of this cold shrink breakout?

A: This cold shrink breakout reaches IP68 waterproof and dustproof grade, and can work stably from -60℃ to 200℃.

Q: What is the lead time for mass orders of this cold shrink breakout?

A: Standard delivery is 25 days after deposit; we can also adjust for urgent projects.

Q: What payment terms do you accept for this cold shrink breakout?

A: We accept T/T with 50% deposit in advance and 50% balance before shipment.

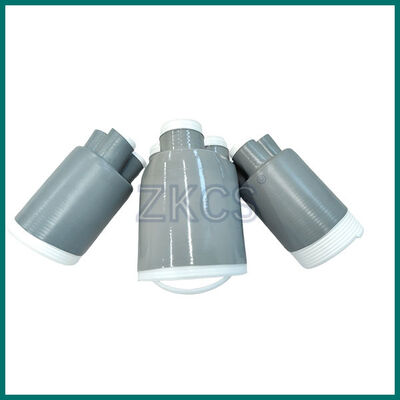

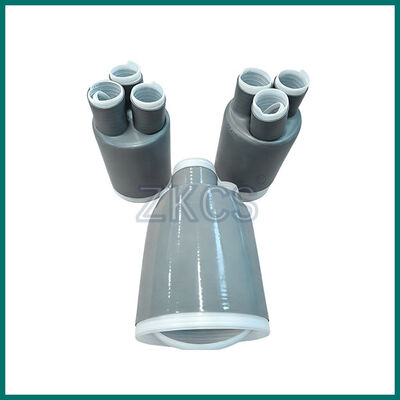

 Product picture for your reference



Cold Shrink Breakout | Pneumatic Expanding 3-Finger Silicone Rubber Cable Breakout for 12/20kV Power Systems 0

Cold Shrink Breakout | Pneumatic Expanding 3-Finger Silicone Rubber Cable Breakout for 12/20kV Power Systems 1

Cold Shrink Breakout | Pneumatic Expanding 3-Finger Silicone Rubber Cable Breakout for 12/20kV Power Systems 2
